Smart and Aesthetic Radiators

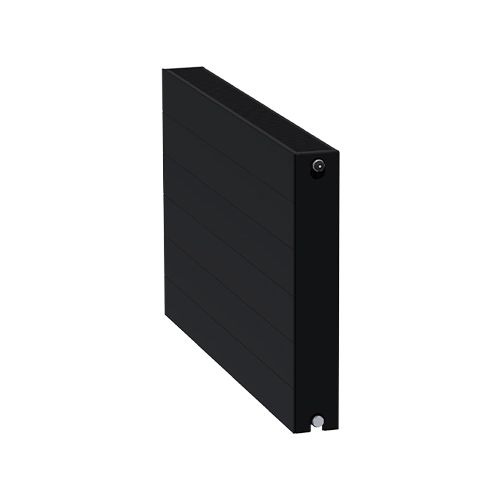

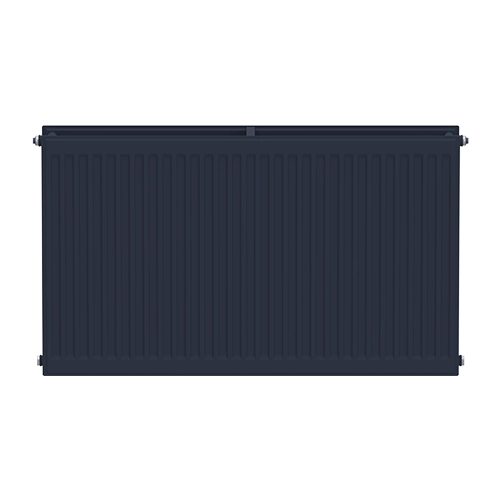

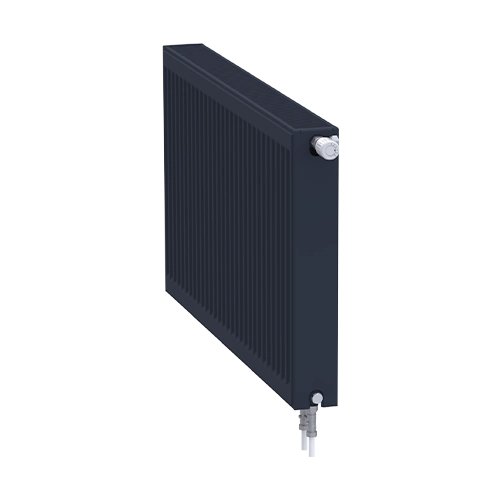

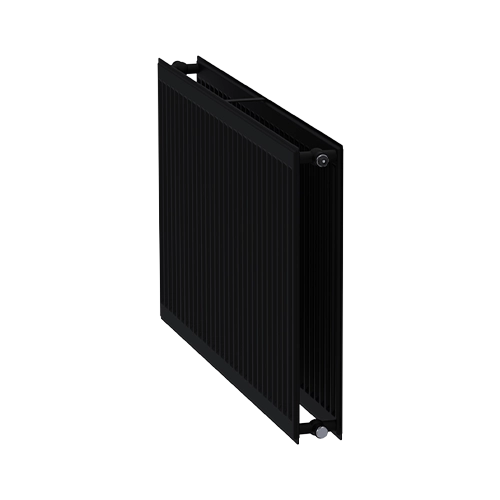

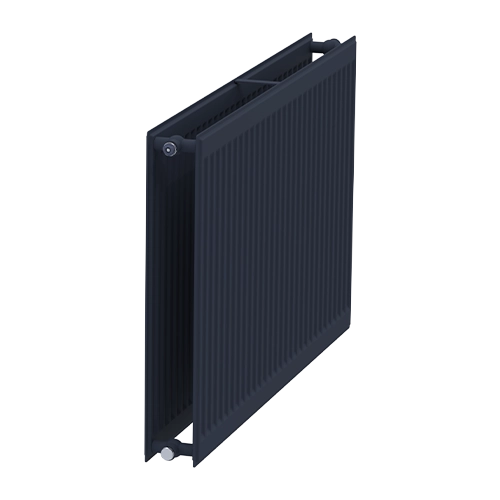

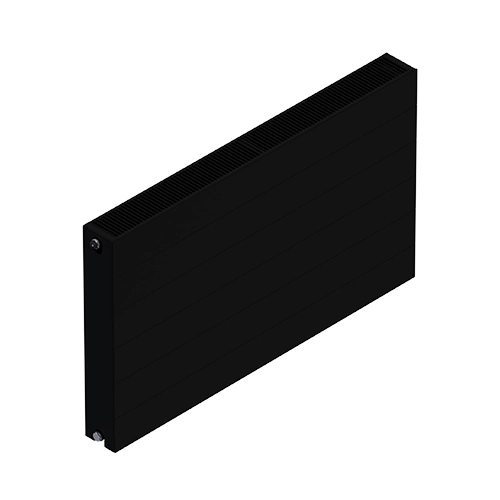

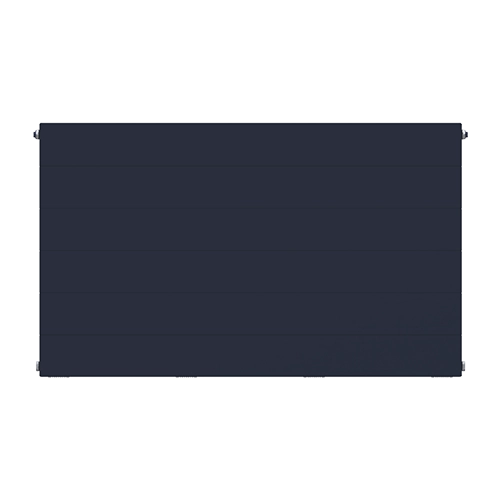

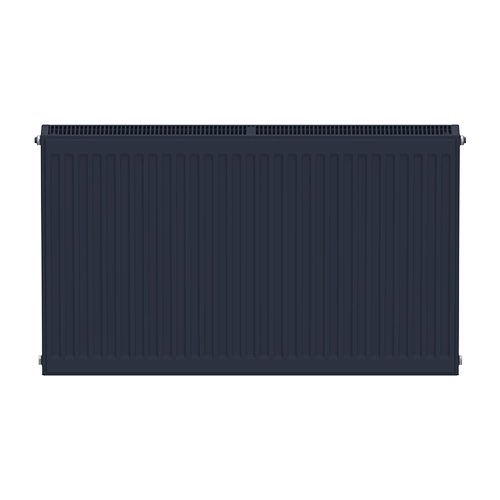

Colorful Radiator

Description

Our colored panel radiator series is designed to add elegance to living spaces by combining high heat efficiency with aesthetic design. Its body made of quality steel offers long-lasting and durable performance.

DC01 is manufactured from cold rolled steel sheet in accordance with EN 10130 & EN 10131 standards and tested at 13 bar pressure on LEAS production lines. Painting and packaging processes are completed with automation systems and palletized by robots.

Technical Specifications

  • Type Options: 11, 21, 22, 33
  • Widths: Type 11: 70 mm, Type 21: 72 mm, Type 22: 103 mm, Type 33: 163 mm
  • Height: 300 mm - 900 mm (300, 400, 500, 600, 700, 900 mm)
  • Length: 400 mm - 3000 mm
  • Connections: 4 x G ½“, 6 x G ½”, 8 x G ½”
  • Pitch Dimension: 33 mm

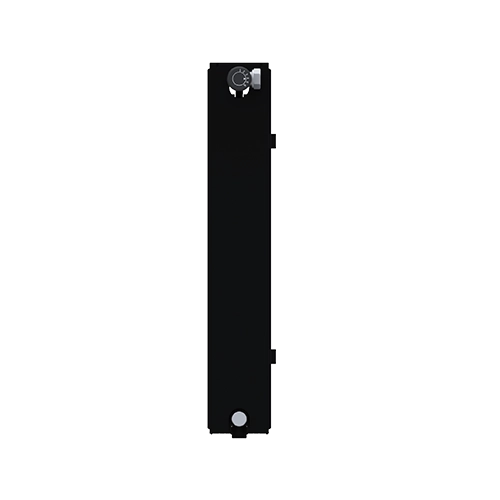

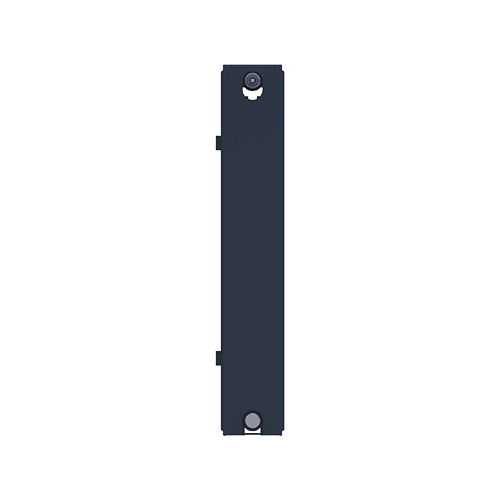

  • Coloring: RAL 9005 Matte Black, RAL 7016 Anthracite Grey, RAL 5008 Grey Blue, Pearl Gold, Grey Silk, Metallic Brown and Crocodile textured special color options
  • Packing: Wooden pallet, safe transportation with polyester tape

Parameters

  • Maximum operating temperature: 110 °C
  • Maximum working pressure: 10 bar
  • Mounting Vertical and horizontal mounting options
  • Durability High resistance to corrosion and impact
  • Decorative harmony: Wide range of colors and aesthetic design
  • Heat efficiency: Maximum thermal power with large convector surface area
