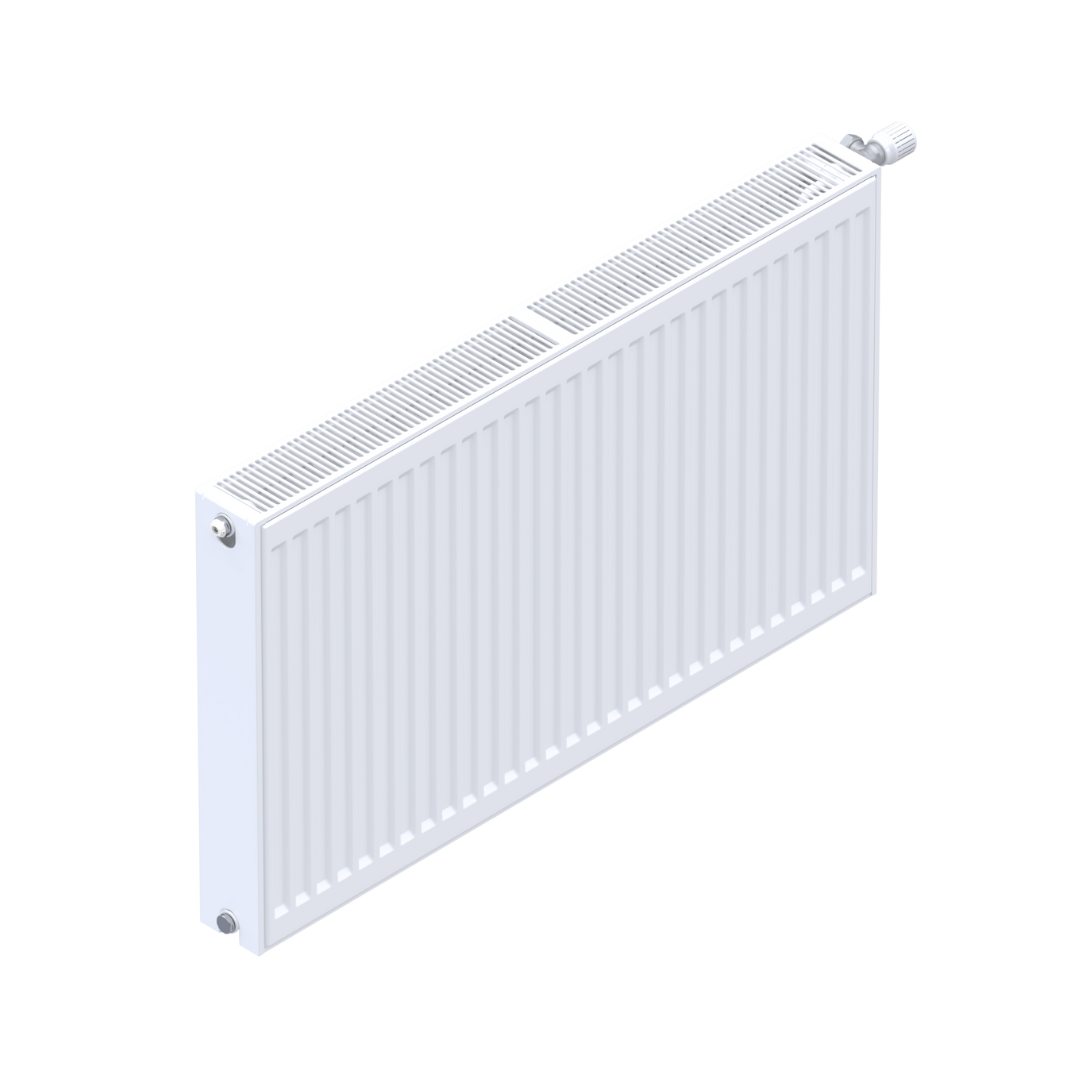

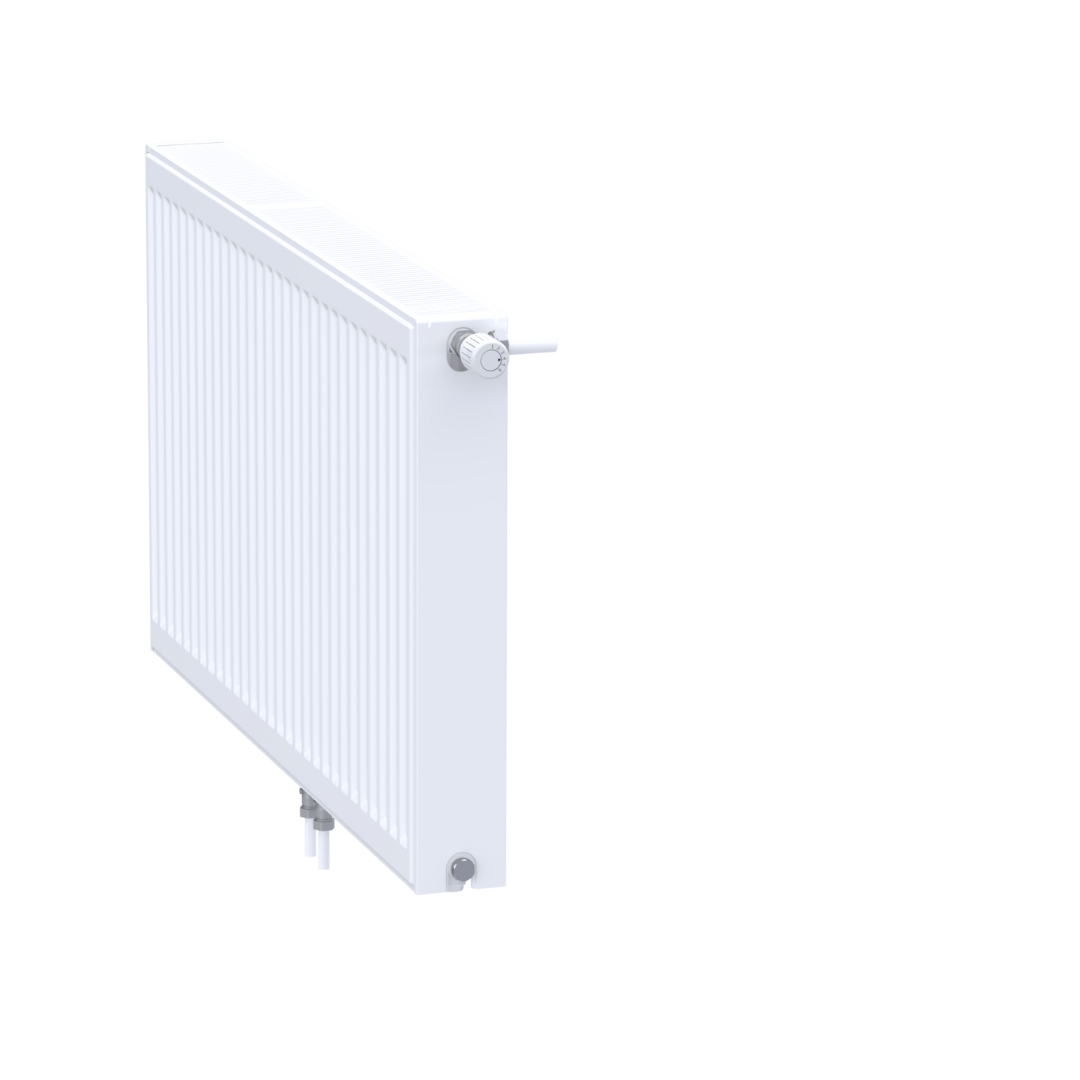

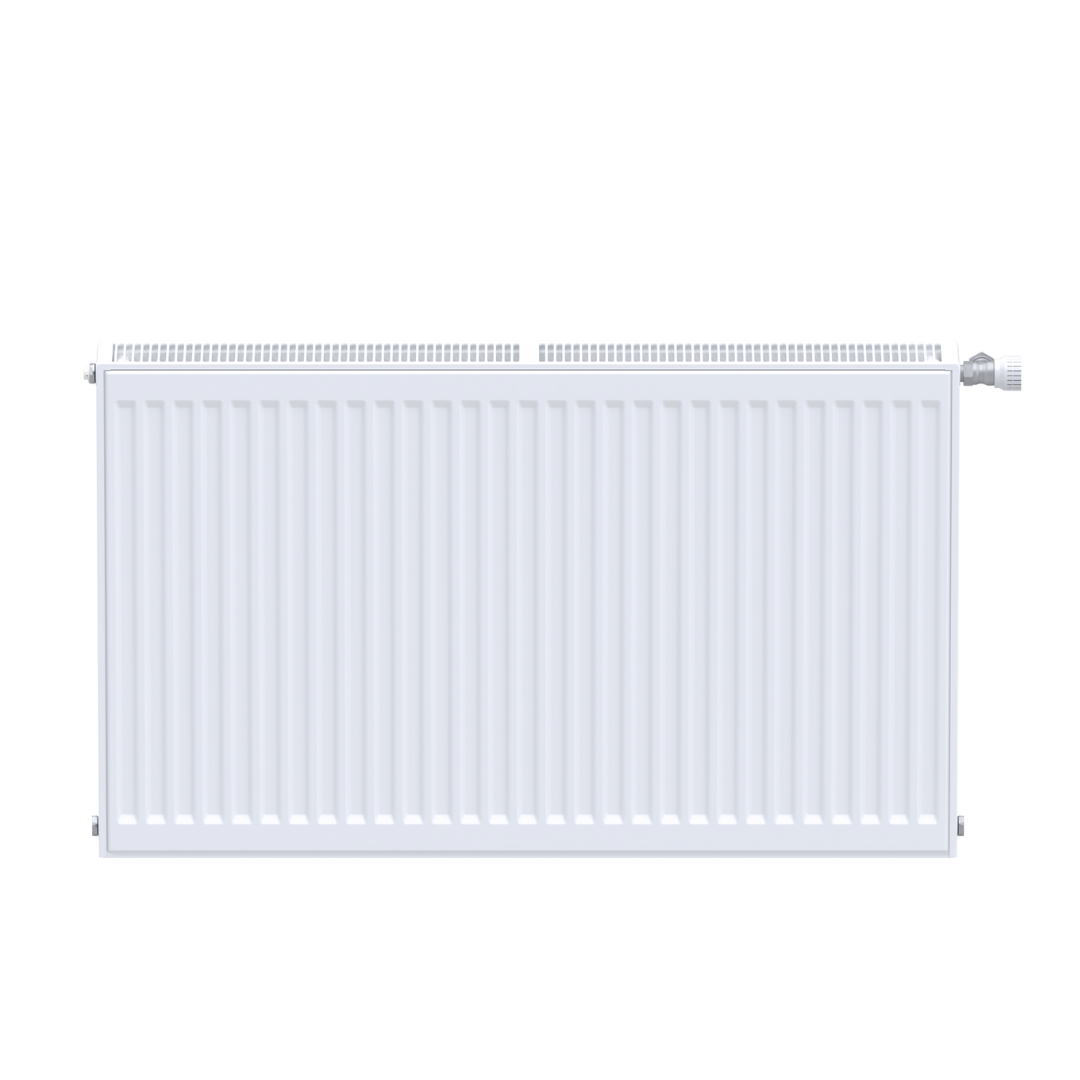

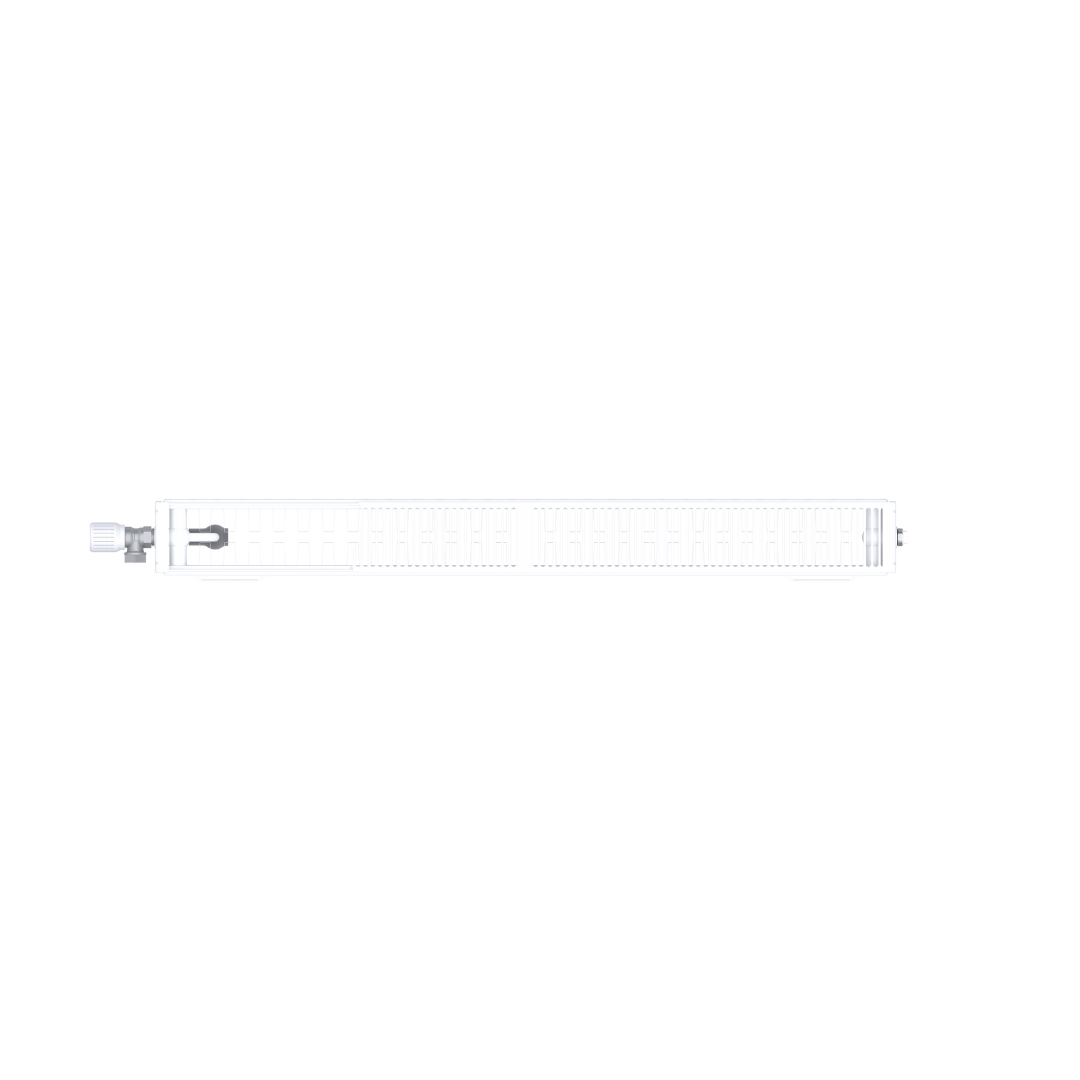

Ventil Compact Panel Radiator
Description
Ventil Compact Panel Radiators offer both an aesthetic appearance and efficient, cost-effective heating thanks to their bottom connection feature. With 33.3 mm pitch water channels and a wide convector surface area, they deliver high thermal output. The connection direction can be manufactured as right, left, or center. For dual-sided usage flexibility, a bracket-free production option is available.
Technical Specifications
- DC01 grade cold-rolled panel and convector sheet (DIN EN 10130)
- Aesthetic design with 33.3 mm pitch water channels
- High heat efficiency through wide convector surface
- Nano-technological surface treatment
- Water-based primer paint and RAL 9016 electrostatic powder coating
- Automated painting and packaging lines
- Secure packaging with wooden pallet and polyester strap
- Connection: 6 x G ½” or 8 x G ½”
Parameters
- Type: 11, 21, 22, 33
- Length: 400 mm – 3000 mm
- Height: 300 mm – 900 mm
- Maximum operating temperature: 110 °C
- Maximum operating pressure: 10 bar
- Installation: Professional installation recommended (in accordance with the User Manual)
- Durability: Resistant to corrosion and impact
